Welcome to Xiangshan Huayang Machinery Accessories Factory
0086-574-65010069  0086-574-65012388
Revolving Handles
  • Revolving Handles
  • Product Name: Revolving Handles
    Model Number: HY8310.4-1
    Brand Name: Huayang
    Executive Standard:
    Material: Steel / Bakelite、steel
    Surfaced Process: Sand-blasted / Chrome bright
    Place of Origin: Zhejiang, China (Mainland)
Product specification

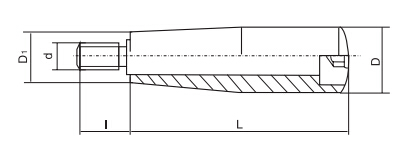

Drawing

HY8310.4-1轉(zhuǎn)動長手柄結(jié)構(gòu)圖

Parameter Size

Item No.Main dimensions（mm）Threaded shank
SteelBakeliteLDD?dl
HY8310.4-1\AM6x50HY8310.4-1\BM6x50501612M612
HY8310.4-1\AM8x63HY8310.4-1\BM8x63631814M814
HY8310.4-1\AM10x80HY8310.4-1\BM10x80802216M1016
HY8310.4-1\AM12x100HY8310.4-1\BM12x1001002518M1218


Add：The village of crab plant, Hepu town,Xiangshan, Zhejiang, China Tel：0086-574-65010069  0086-574-65012388 Fax：0086-574-65010213

Copyright ? Xiangshan Huayang Machinery Accessories Factory
